Spectra Precision HV1305C Rotary Laser System Kit with HL760 Receiver, RC1402 Remote, GR152 Rod, Q104025 Tripod & Accessories — IP66, 1,200 m Range - Red Beam - System Case - Grade Rod (inches)

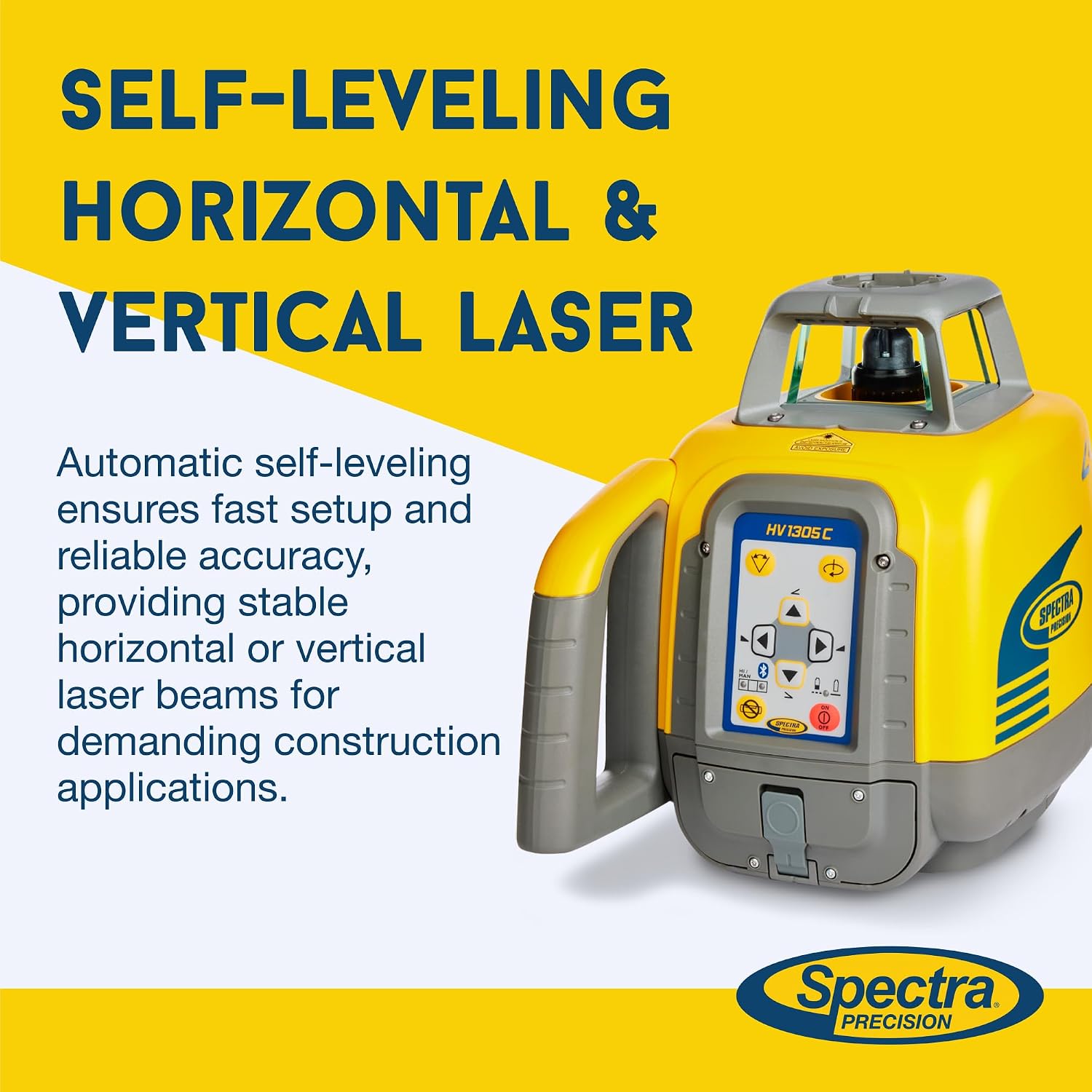

The Spectra Precision HV1305C system is engineered as a comprehensive, field-ready laser alignment suite suited for commercial, industrial, and infrastructural layout tasks. Built-in Bluetooth connects the laser to the free Spectra Precision app for intuitive remote control from your smartphone or tablet. At its core, the HV1305C rotary laser emits a red beam with ±1.5 mm precision at 30 m and self-levels in both horizontal and vertical axes, establishing reliable reference lines with minimal manual adjustment. When paired with the included HL760 digital receiver, this extends its effective working diameter to 1,200 m, enabling coverage of expansive jobsite zones without frequent repositioning. The HL760 adds smart features like digital readout, laser pairing, and functions such as GradeMatch and PlaneLok for slope work and locked elevation control. Built for real jobsite conditions, the HV1305C is sealed to IP66, fending off dust and water intrusion, and designed to survive 1 m drop impacts or 1.5 m tip-overs without calibration loss. A versatile laser for multiple applications including tilt walls and 90-degree layouts. You can tailor performance with selectable rotation speeds (0 to 600 rpm) and scan modes at 5°, 15°, 45°, or 90°, ideal for both interior and exterior alignment tasks. A built-in height-of-instrument alert automatically stops rotation if the unit is jarred. The kit includes the HL760 receiver mounted via a robust C70 rod clamp, giving stable alignment on grade rods. The RC1402 radio remote allows wireless adjustment of speeds, modes, and scan settings from a distance. The kit includes a B10 NiMH recharge pack and CH10 charger for dependable runtime. Vertical layout is supported via the 1005516 vertical adapter for the HL receiver. Measurement reference comes via the GR152 15 ft grade rod (8ths graduations) in anodized, moisture-resistant aluminum. Stability and height control are handled by the Q104025 aluminum tripod. All components fit into the 128995-00 molded system carrying case. This product is Class 3A/3R classification with <5 mW output.

• PROFESSIONAL ACCURACY: The HV1305C laser supports ±1.5 mm accuracy at 30 m with dual-axis self-leveling, delivering dependable horizontal and vertical reference lines even under challenging on-site conditions.
• EXTENDED COVERAGE: Coupled with the HL760 digital receiver, the system supports a working diameter up to 1,200 m or 4,000 ft, reducing the need for multiple setups across long site spans with the Spectra app.
• TOUGH FIELD DESIGN: Rated IP66 for dust and water protection, the HV1305C endures 1 m drops and 1.5 m tip-overs, while offering multiple rotation speeds (0, 10, 100, 200, 300, 600 rpm) and selectable scan angles or 5°, 15°, 45° and 90°.
• ALL-INCLUSIVE KIT ACCESSORIES: Includes HV1305C red beam laser level, HL760 receiver with C70 adapter, RC1402 remote, vertical adapter, B10 NiMH battery with CH10 charger, Q104025 aluminum tripod, GR152 15 ft inches-grade rod, and 128995-00 system case.

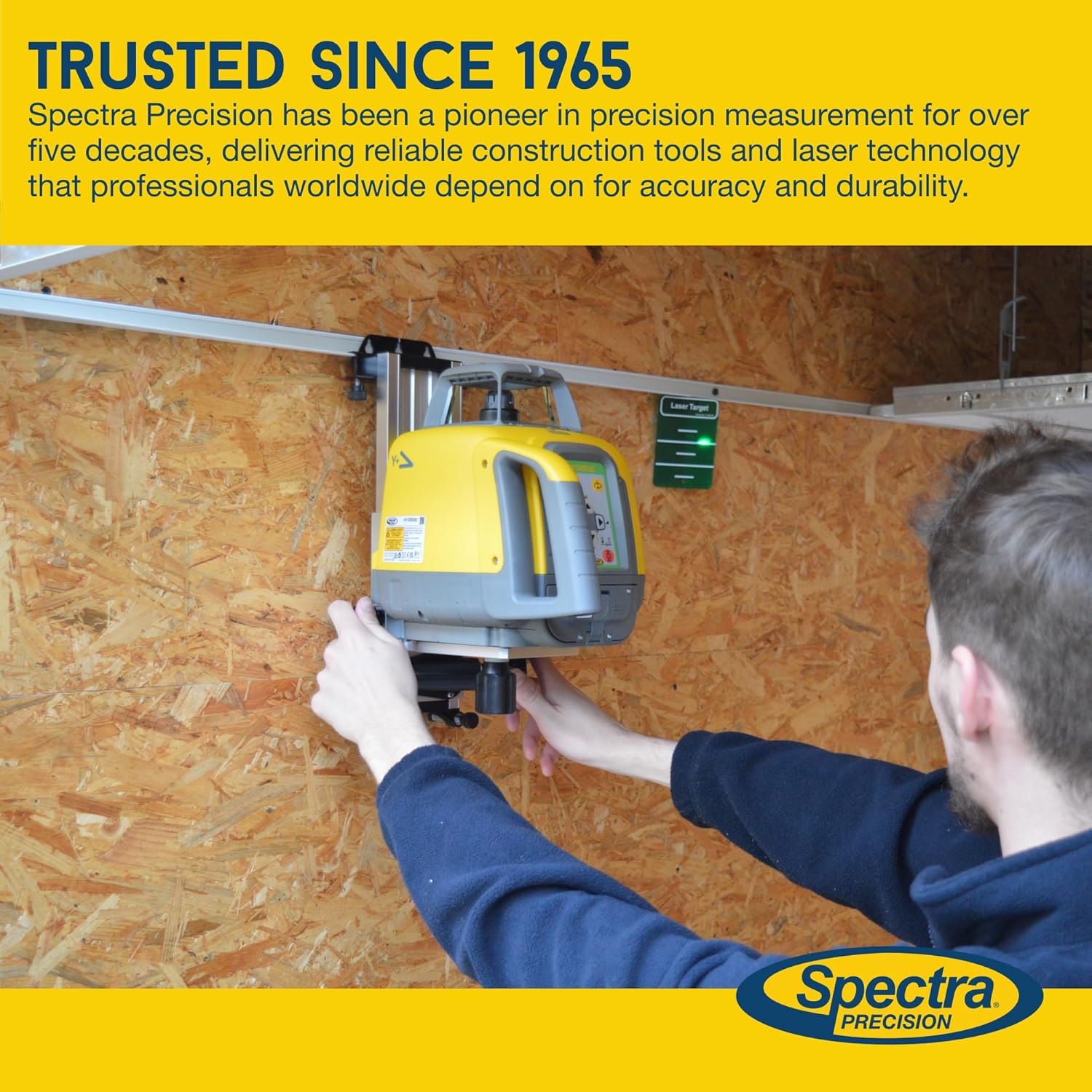

• TRUSTED SINCE 1965: Spectra Precision has been a pioneer in precision measurement for over five decades, delivering reliable construction tools and laser technology that professionals worldwide depend on for accuracy and durability.
